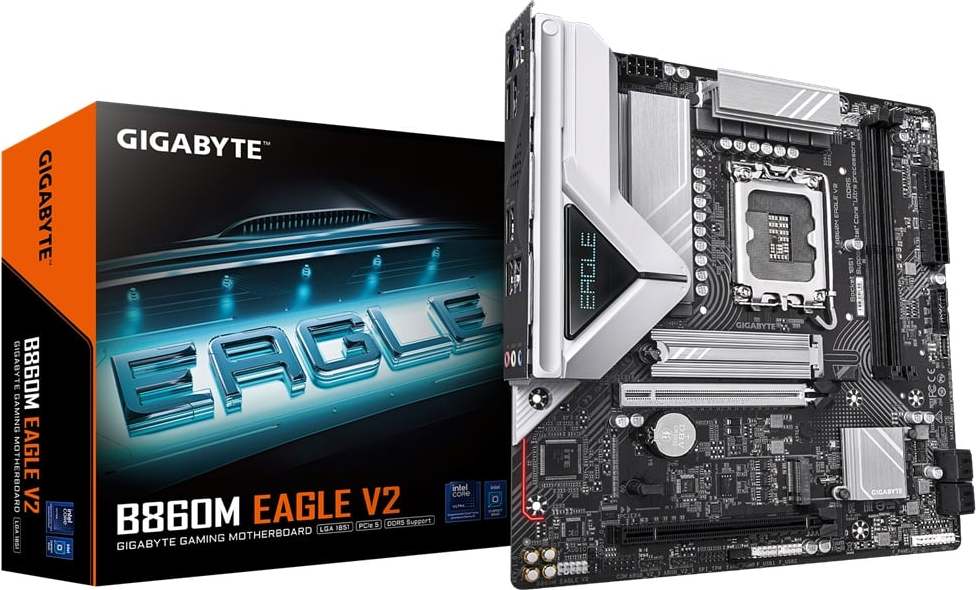

GIGABYTE B860M EAGLE V2

GIGABYTE B860M EAGLE V2Chipset: Intel B860 Express ChipsetRozměrový formát: Micro ATX Form Factor; 24.4cm x 22.5cmPodpora pro procesory: Intel ® Core™ UltraPatice procesoru: LGA1851Paměť: * 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory*Dual channel memory architecture*Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)*Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules*Support for Extreme Memory Profile (XMP) memory modulesGrafické výstupy: * 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz - Support for HDMI 2.1 version and HDCP 2.3* 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz - Support for DisplayPort 2.1 versionZvuková karta: *Realtek® Audio CODEC*High Definition Audio*2/4/5.1/7.1-channel*Support for S/PDIF OutEthernet: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Rozšiřující sloty: * 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) - The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot* 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)Úložný prostor: * 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)* 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)* 4 x SATA 6Gb/s connectorsRAID řadič: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devicesUSB: * 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header* 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)* 3 x USB 2.0/1.1 ports on the back panelChipset+USB 2.0 Hub:* 4 x USB 2.0/1.1 ports available through the internal USB headersPorty na zadním panelu: * 1 x PS/2 keyboard/mouse port*1 x HDMI por**1 x DisplayPort**3 x USB 3.2 Gen 1 ports*3 x USB 2.0/1.1 ports*1 x RJ-45 port*3 x audio jacksInterní porty: Napájení* 1 x 24-pin ATX main power connector*1 x 8-pin ATX 12V power connectorSouvisející s ventilátorem a chlazením* 1 x CPU fan header*1 x CPU fan/water cooling pump header*1 x system fan header*1 x system fan/water cooling pump headerSouvisející s úložištěm* 2 x M.2 Socket 3 connectors*4 x SATA 6Gb/s connectorsUSB* 1 x USB Type-C® header, with USB 3.2 Gen 1 support*1 x USB 3.2 Gen 1 header*2 x USB 2.0/1.1 headersOstatní* 3 x addressable RGB Gen2 LED strip headers*1 x front panel header*1 x front panel audio header*1 x S/PDIF Out header*1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)*1 x serial port header*1 x Q-Flash Plus button*1 x reset jumper*1 x Clear CMOS jumperBIOS:*1 x 256 Mbit flash*Use of licensed AMI UEFI BIOS*PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Odkaz na stránku výrobce: https://www.gigabyte.com/Motherboard/B860M-EAGLE-V2/sp#sp
